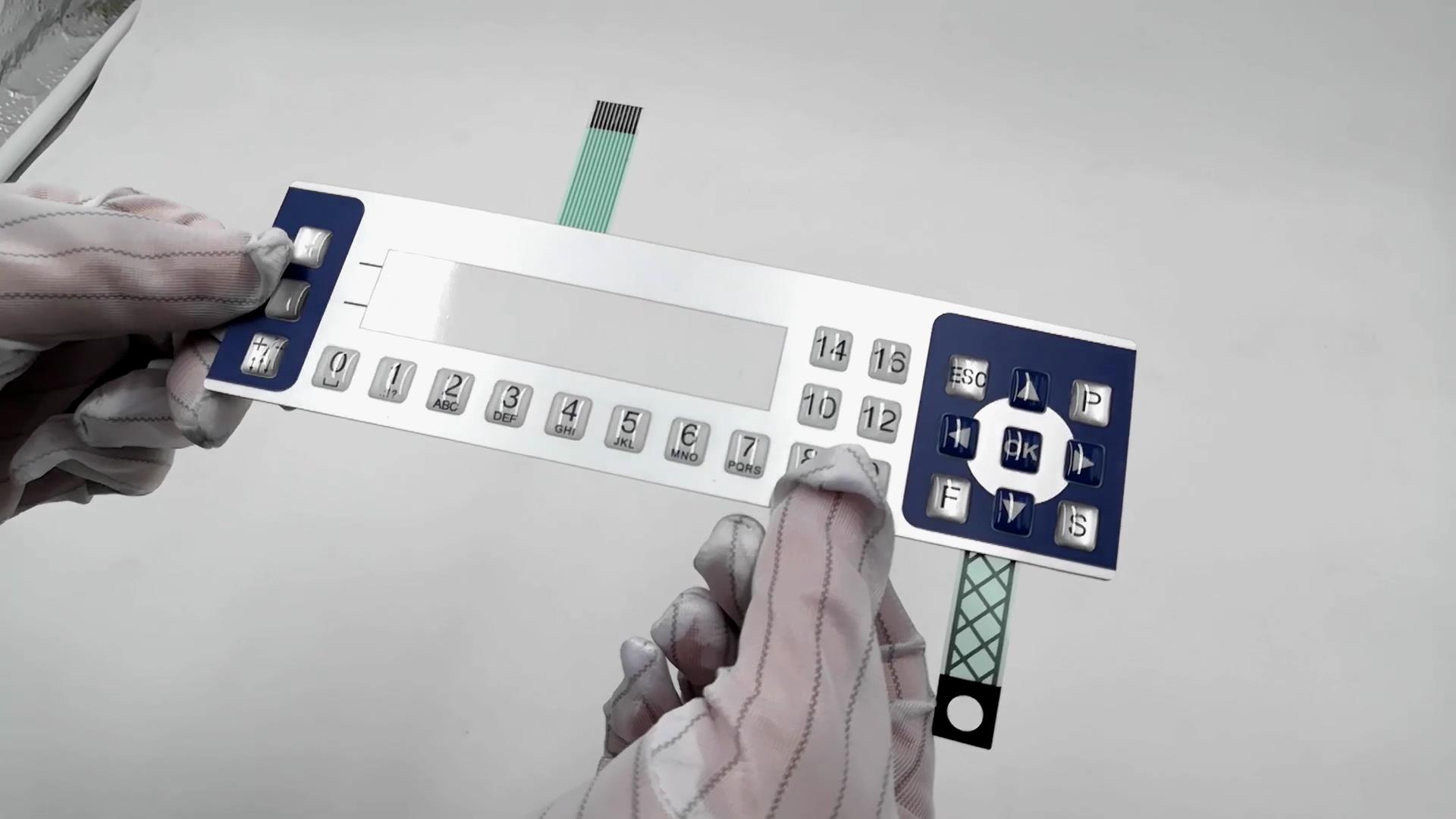

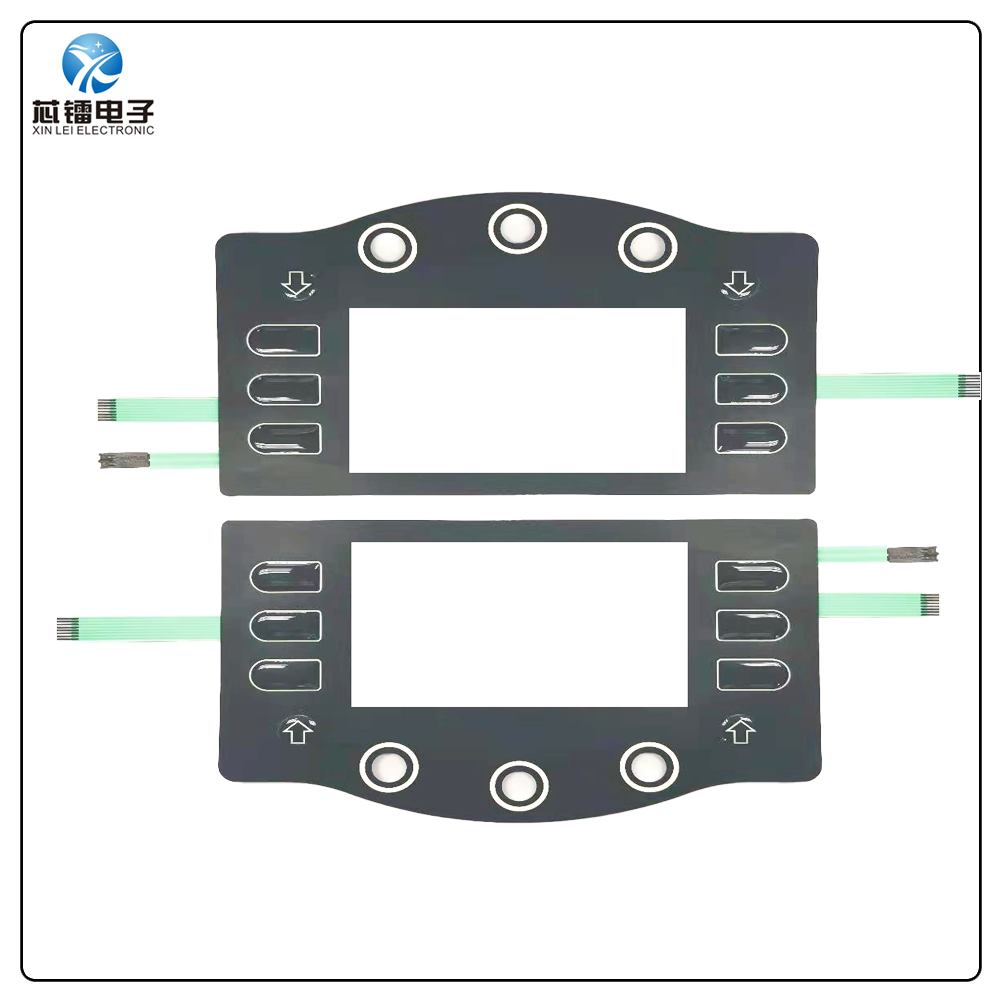

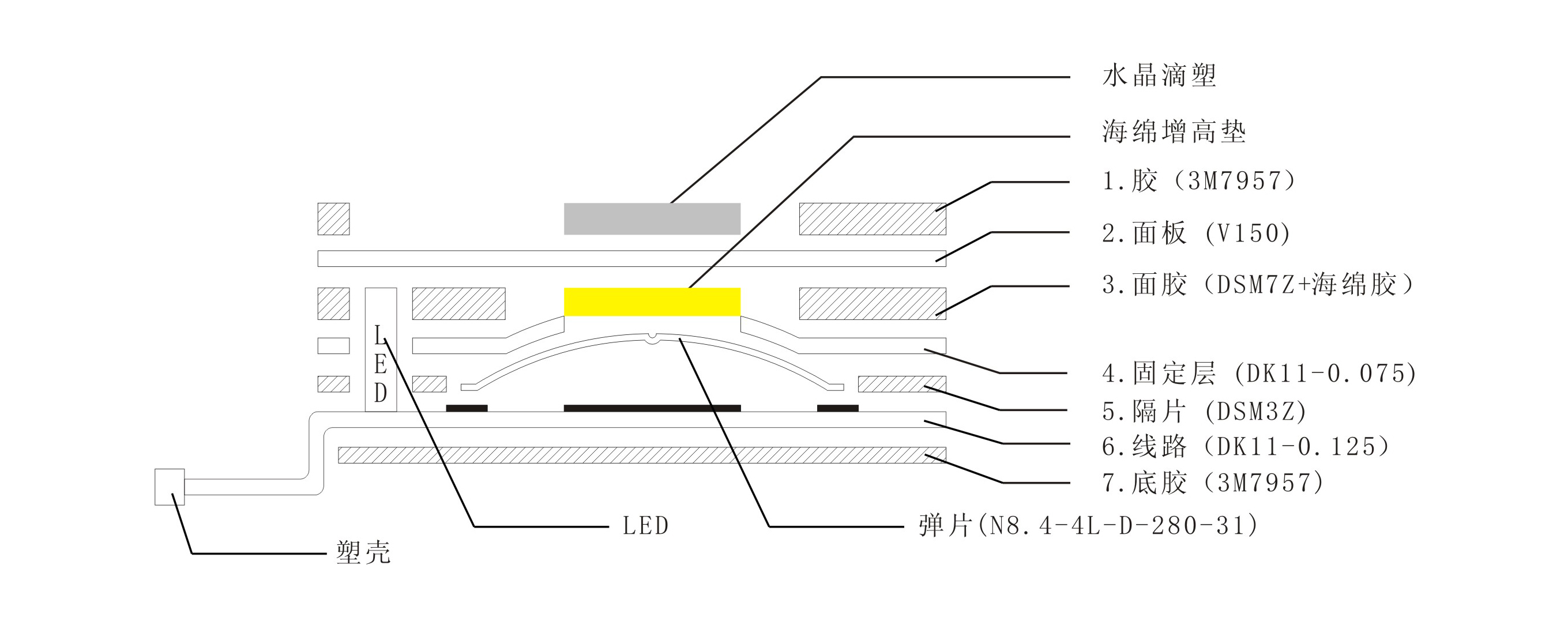

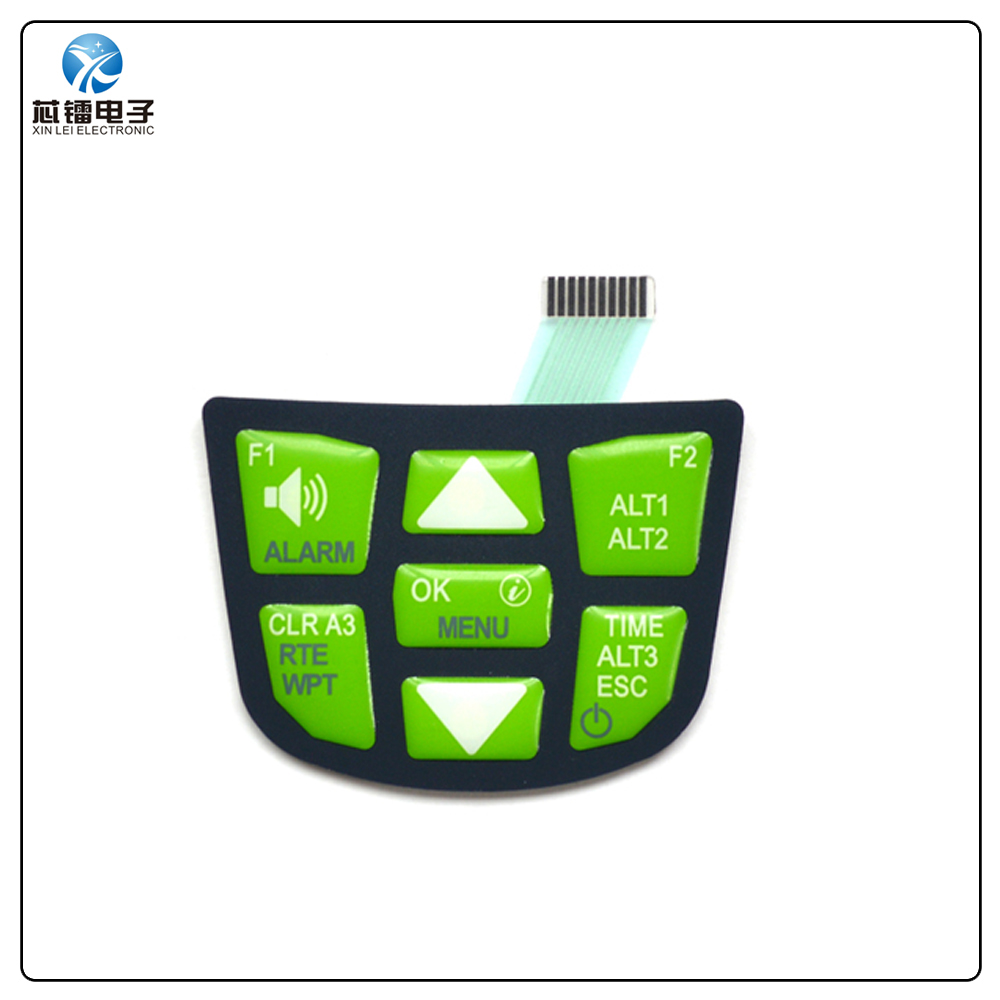

Drip type film switch:
Drip glue on the surface of the buttons to increase their feel, making them crystal clear and further enhancing the decorative effect of the product.
Basic parameters of thin film switches:
Electrical performance of thin film switches
Working voltage: 500VDC
Working current: 100mA
Contact resistance: 0.5-10
Insulation resistance: 100M
Substrate pressure resistance: 2KDVC
Rebound time: 6ms
Circuit resistance: 50, 150, 350 gears, can also be customized according to user needs.
Insulation ink withstand voltage: 100VDC
Service life: 1 million times
High and low temperature: -40 ° -120 °
Waterproof grade: IP65-IP68
